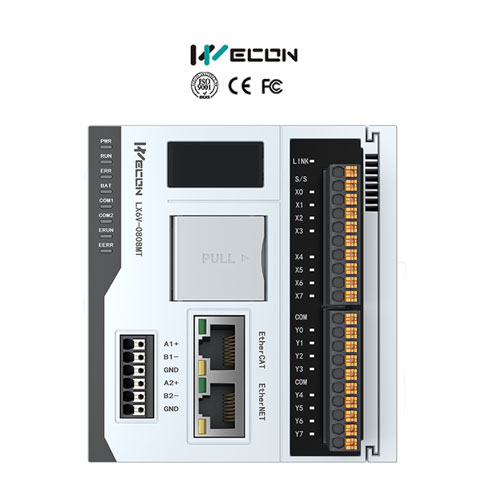

LX6V Series

LX6V-0808MT-DB

08/08

Transistor

8

YES

4

2

N/A

YES

DC

YES

YES

16

LX6V-0808MT-DD

08/08

Transistor

8

YES

4

2

N/A

YES

DC

YES

YES

64

LX6V-0808MT-DE

08/08

Transistor

8

YES

4

2

N/A

YES

DC

YES

YES

128

Running Mode

Cycle Scan / Interrupt

Programming

Instruction table / ladder diagram / FB / FC

Total Instructions

Basic instruction: 29 / Application instruction: 170

Execute time

Basic instruction 0.01-0.02μs

Program Capacity

5M

Download/ Monitoring

Programming cable (Port)

EtherNET

USB TYPE-C

High Speed Pulse Output

Transistor type 4 channels/200KHz

High speed counter interrupt

100 channels

Timer Interrupt

100 channels, support 0.1ms interrupt

External input interrupt

X0-X7 supports both rising and falling edges

High Speed Input Single Phase

8 channels 150 KHz

High Speed Input AB Phase

4 channels 150K Hz, supports 2 or 4 frequency multiplication

Power-down save

Adjusted by software

Filter

For all the input terminals

Serial Port

RS485, RS485

Temperature

Working Temperature：0 ~ 55℃ / Storage Temperature：-20 ~ 70℃

Humidity

35~ 85%RH（Without condensation）

Shock Resistance

JISC0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P , pulse width 10us, period 0.3 s, edge time 5ns , duration 1min.

TF

Support

ETHERNET

1000M Ethernet

ETHERCAT

Up to 128 servo axis
