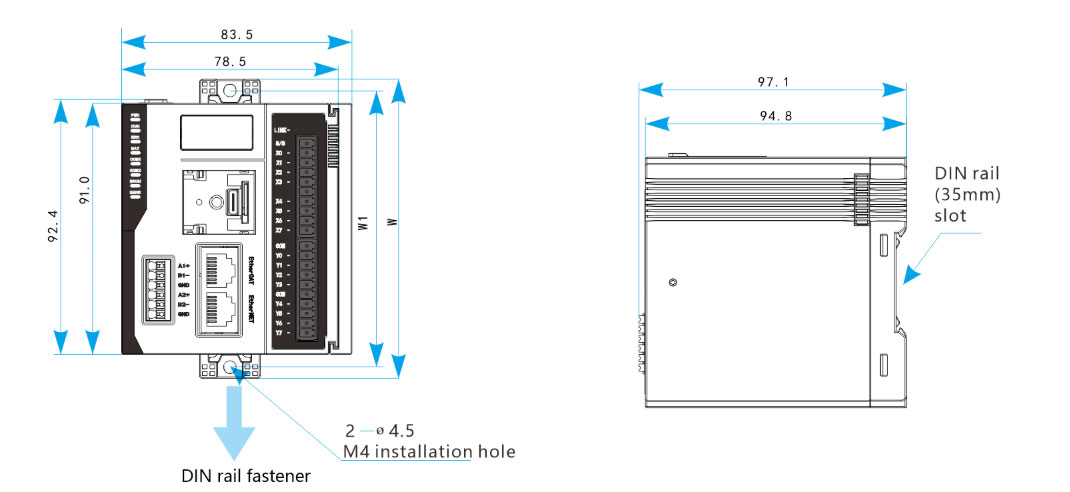

Physical & Electrical

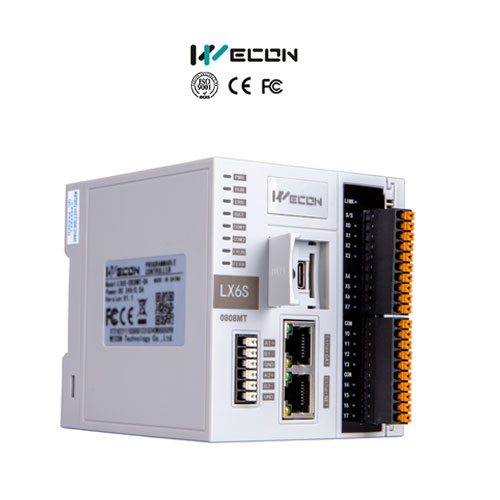

LX6S Series
- High speed IO: 8-channel 150K Hz single phase inputs, 4-channel 150K Hz AB phase inputs, 4-channel 200K Hz outputs.
- Communication ports: 2 RS485 serial ports, 2 Ethernet ports (EtherCAT and Ethernet).
- 8 inputs and 8 outputs, supports 32 extension modules (up to 64 modules by additional power module).
Specification
|
LX6S Model |
I/O |
Output Type |
Pulse Counter |
E-CAM |
Pulse Output |
RS485 |
BD Board |
Module |
Power Supply |
Ethernet |
EtherCAT |
Axis |
|
LX6S–0808MT-DA |
08/08 |
Transistor |
4 |
YES |
4 |
2 |
N/A |
YES |
DC |
YES |
YES |
8 |
|
LX6S–0808MT-DB |
08/08 |
Transistor |
4 |
YES |
4 |
2 |
N/A |
YES |
DC |
YES |
YES |
16 |
|
Item |
LX6S-0808MT |
|
Running Mode |
Cycle Scan / Interrupt |
|
Programming |
Instruction List / Ladder Diagram / FB / FC |
|
Total Instructions |
Basic instruction: 29 / Application instruction: 170 |
|
Execute Time |
Basic instruction 0.01-0.02μs |
|
Program Capacity |
5M |
|
Download/ Monitoring |
Programming cable (Port) |
|
Ethernet |
|
|
USB Type-C |
|
|
High Speed Pulse Output |
Transistor type, 4 channels / 200kHz |
|
High Speed Counter Interrupt |
100 channels |
|
Timer Interrupt |
100 channels, supporting 0.1ms interrupt |
|
External Input Interrupt |
X0-X7 supporting both rising and falling edges |
|
High Speed Input Single Phase |
8 channels 150kHz |
|
High Speed Input AB Phase |
4 channels 150kHz, supports 2 or 4 frequency multiplication |
|
Power-down Save |
Adjusted by software |
|
Filter |
For all the input terminals |
|
Serial Port |
COM1: RS485, COM2: RS485 |
|
Temperature |
Working Temperature：0 to 55℃ / Storage Temperature：0 to 70℃ |
|
Humidity |
35 to 85%RH（Without condensation） |
|
Shock Resistance |
JISC0040 Standard |
|
Influence Immunity |
Meet the IEC61000-4-4 and GB/T 17626.4 standard: Noise voltage amplitude 1KVP-P, Pulse width 10us, Period 0.3s, Edge time 5ns, Duration 1min. |
|
TF Card |
Support |
|
Ethernet |
Hundred Megabit Ethernet |
|
EtherCAT |
8/16 Servo axes |
