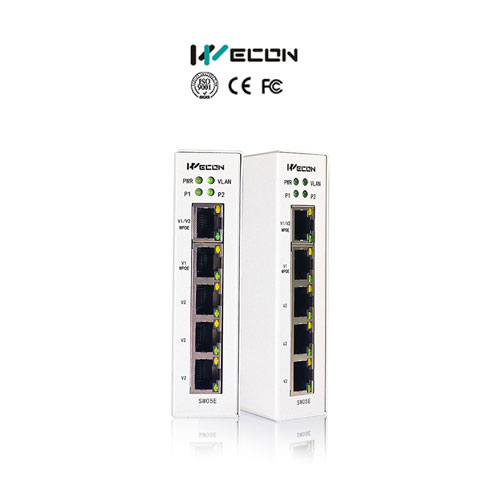

Industrial Unmanaged Switch

Model

SW05E

Ethernet Port

ETH

5 Ethernet ports (10/100-megabit)

Indicator

LED

PWR, VLAN, P1, P2

Power Supply

Input Power

24V DC (18 to 28V)

Power Isolation

N/A

Power

Less than 1W

Power Output

Output Power

24V DC (14 to 24V)

Power Isolation

N/A

Load Power

Less than 10W

Vibration Resistance

10 to 25Hz (X, Y, Z direction 2G/30 minutes)

Enclosure Material

Iron metal casing

Dimension(W*H*D)

113.1*71.0*29.0mm

Installation

DIN + wall mount

Rail Mounting Dimensions

Standard DIN rail, 35mm

Storage Temperature

-20 to 70℃

Working Temperature

-10 to 55℃

Working Humidity

10 to 90%RH (Non-condensing)

Cooling Method

Natural Cooling
