Description
4.3inch PI8043ig HMI
- Motherboard specifications: Quad core high performance CPU comes with a 4G Flash/512M RAM memory.
- Display: 4.3 inch; Resolution: 480*272
- Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port.
- Download methods: USB download cable, USB flash drive download, LAN download, remote download.

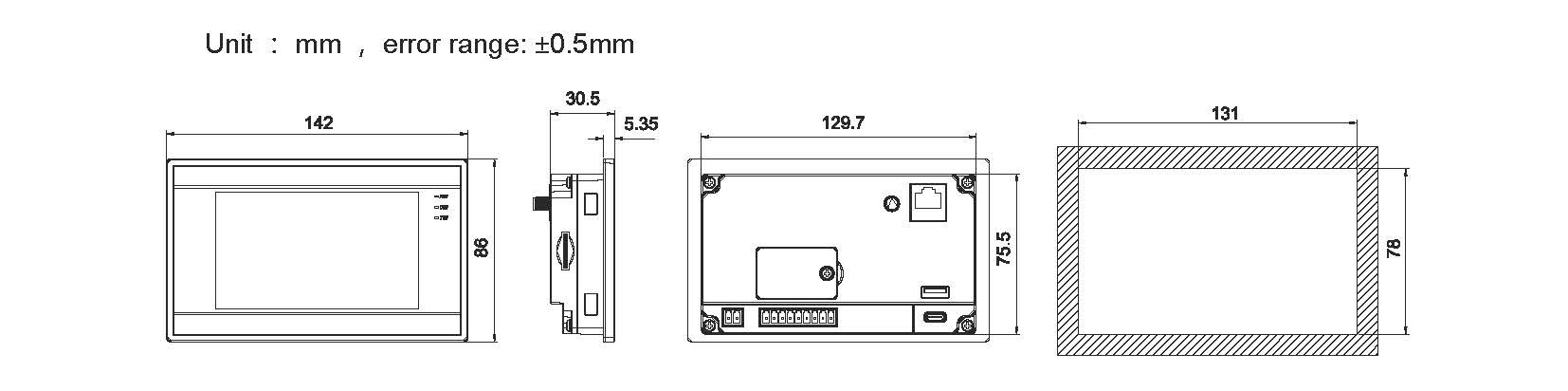

Physical & Electrical
Specification
|
Model |
V-Net Functions |
MQTT |
Lua Script |
LAN Monitoring |
4G / WIFI |
|||||||
|
Realtime Data |
Alarm Data |
History Data |
APP & Remote Control |
Remote Update HMI |
WVPN |
Cloud SCADA |
Pass-through |
|||||
| PI8043ig |
300 |
200 |
100 |
√ |
√ |
√ |
√ |
Serial |
√ |
√ |
√ |
X |
| PI8043ig(G) |
300 |
200 |
100 |
√ |
√ |
√ |
√ |
Serial |
√ |
√ |
√ |
4G |
| PI8043ig(W) |
300 |
200 |
100 |
√ |
√ |
√ |
√ |
Serial |
√ |
√ |
√ |
WIFI |
|
Main |
Processor |
Cortex A35 |
|
Display |
Size |
4.3” |
|
Resolution |
480*272 |
|
|
Brightness (cd/m2) |
300 |
|
|
Backlight |
LED |
|
|
Backlight Lifetime |
50,000 hours |
|
|
Touch Panel |
High precision four-wire resistive |
|
|
Storage |
Memory |
512MB |
|
Flash |
4GB |
|
|
SD Card Slot |
— |
|
|
USB Port |
USB2.0 Host or USB2.0 Type-C |
|
|
RTC |
Real-time clock |
Yes |
|
Calendar |
Yes |
|
|
I/O Port |
COM1 |
CN1:RS422/RS485 |
|
COM2 |
— |
|
|
COM3 |
— |
|
|
Ethernet |
x1 |
|
|
CANopen |
— |
|
|
Power |
Rated Power |
< 8W |
|
Power Voltage |
DC 24V |
|
|
Input range |
DC 12 ~ 28V |
|
|
Shell Color |
Grey |
|
|
Enclosure |
Shell Material |
Plastic+ABS(Polycarbonate) |
|
Overall Size (mm) |
142.0W*86.0H*30.5D |
|
|
Mounting Size (mm) |
131.0W*78.0H |
|
|
Mounting Method |
Panel Mount |
|
|
Weight (Kg) |
0.39 |
|
|
Environment |
Working Temperature |
-10 ~ 55°C |
|
Storage Temperature |
-20 ~ 70°C |
|
|
Humidity |
10 ~ 90％RH (Non-condensing) |
|
|
Vibration Resistance |
10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) |
|
|
Cooling |
Air Cooling |
|
|
Software |
Programming |
PI Studio |
|
Remote Access |
YES |
|
|
Email Alarm |
YES |
|
|
IP Camera |
YES |
|
|
Audio Output |
— |
|
|
Video Player |
— |
|
|
Data Tool |
Yes |
|
|
Certificates |
IP Code |
IP65 (Front panel) |
|
CE |
CE Marked |
|
|
FCC |
FCC Class A |
