Specification
| Series | PI3000ie | PI3000ie | |
| Model | PI3043ie | PI3043ieS-N | |
| Main | OS | Linux 4.4.0 QT based | Linux 4.4.0 QT based |
| Processor | Cortex A35 1.2GHz | Cortex A35 1.2GHz | |
| Display | Size | 4.3″ | 4.3″ |
| Screen | TFT | TFT | |
| Resolution | 480*272 | 480*272 | |
| Color | 16,000k colors | 16,000k colors | |
| Brightness (cd/m2) | 300 | 300 | |
| Backlight | LED | LED | |
| Backlight Lifetime | 50,000 hours | 50,000 hours | |
| Touch Panel | High precision four-wire resistive | High precision four-wire resistive | |
| Storage | Memory | 64 MB | 64 MB |
| Flash | 128 MB | 128 MB | |
| SD Card Slot | — | — | |
| USB Port | Micro USB | Micro USB | |
| RTC | Real-time clock | Yes | Yes |
| Calendar | Yes | Yes | |
| I/O Port | COM1 | CN1:RS422/RS485 CN2: RS232 |
CN1:RS422/RS485 CN2:RS232 CN3:RS485 |
| COM2 | — | — | |
| COM3 | — | — | |
| Ethernet | — | x1 | |
| CANopen | — | — | |
| Wi-Fi | — | — | |
| 4G LTE | — | — | |
| Power | Rated Power | < 5W | < 5W |
| Power Voltage | DC 24V | DC 24V | |
| Input range | DC 12 ~ 28V | DC 12 ~ 28V | |
| Shell Color | Grey | Grey | |
| Enclosure | Shell Material | PC+ABS | PC+ABS |

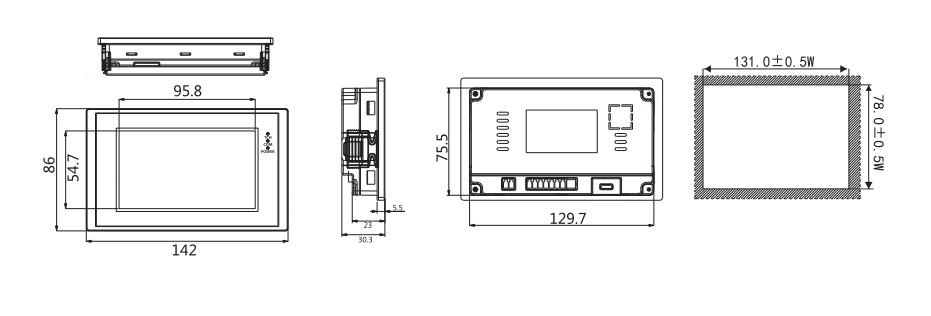

| Overall Size (mm) | 142.0W*86.0W*30.3D | 142.0W*86.0W*30.3D | |
| Mounting Size (mm) | 131.0W*78.0D | 131.0W*78.0D | |
| Mounting Method | Panel Mount | Panel Mount | |
| Weight (Kg) | 0.3 | 0.3 | |
| Environment | Working Temperature | 0 ~ 50°C | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C | -20 ~ 60°C | |
| Humidity | 10 ~ 90％RH (Non-condensing) | 10 ~ 90％RH (Non-condensing) | |
| Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | |
| Cooling | Air Cooling | Air Cooling | |
| Software | Programming | PIStudio | PIStudio |
| Remote Access | — | — | |
| Email Alarm | — | — | |
| IP Camera | — | — | |
| Audio Output | — | — | |
| Video Player | — | — | |
| Data Tool | Yes | Yes | |
| Certificates | IP Code | IP65 (Front panel) | IP65 (Front panel) |
| CE | CE Marked | CE Marked | |
| FCC | FCC Class A | FCC Class A | |
| UL | — | — |
